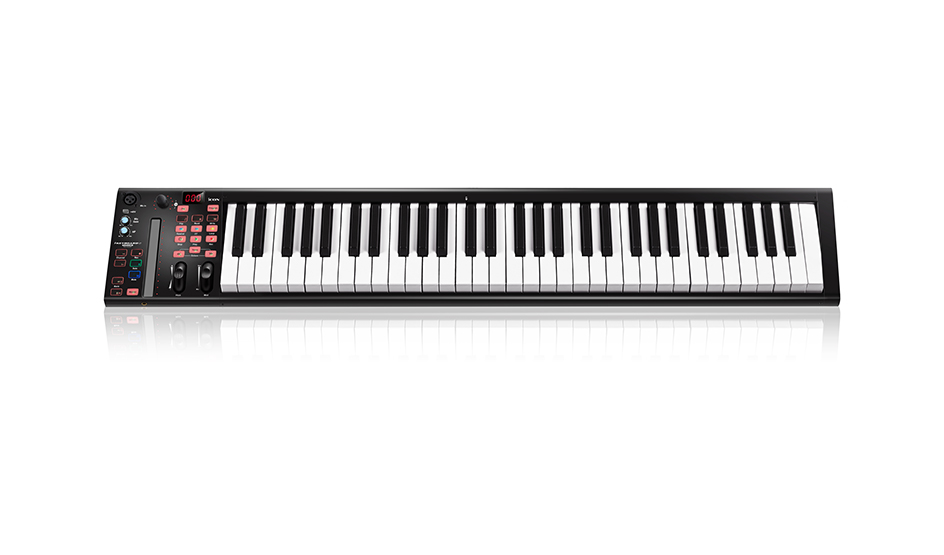

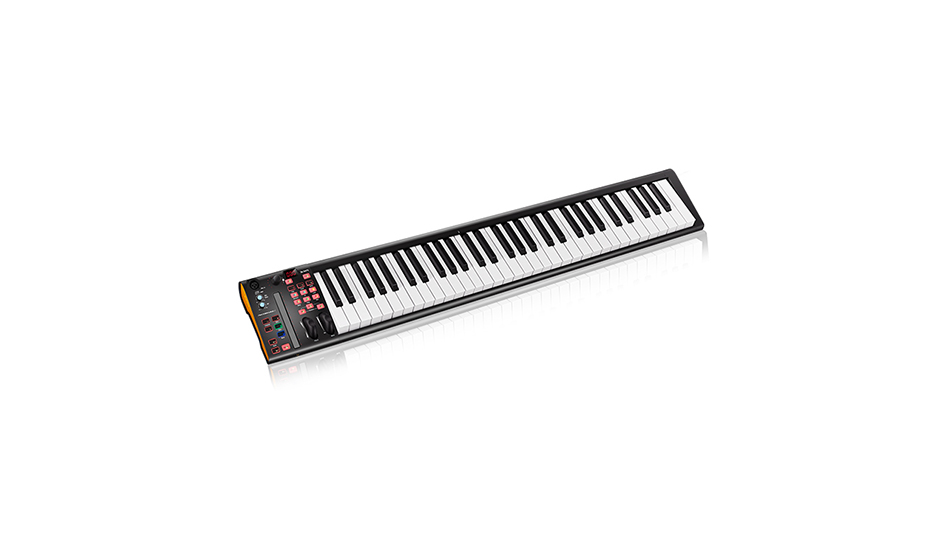

iKeyboard 6S
The iKeyboard S is a powerful MIDI keyboard controller equipped with a high quality 24-bit 96/192khz 2-In/2-Out USB audio interface, Mackie Control and HUI protocol to control your DAW software. The flexible, functional and effortless setup lets you get right down to business.
● 61 semi-weighted keys
● 24-Bit 96/192KHz 2-In/2-Out USB Recording Interface
● 2×2 analog I/O full duplex recording and playback
● 1 mic input with individual gain control
● 2 analog inputs and 2 analog outputs on 1/4” TRS jacks
● Backlit LED touch fader reacts in real-time with DAW.
● Synchronize automatically with different channel values when switching between channels
● Dual function encoder knob (Enter & rotate)
● 11-segment LED surrounding the encoder to indicate the rotating position
● Velocity-sensitive piano style keyboard
● Modulation and Pitch jog-wheel
● 3-segment LED screen
● 18 assignable LED backlit buttons
● Illuminated channel buttons including Rec-enable, Solo and Mute
● 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
● Transpose button with key switch for quick and easy pitch shift.
● Octave up/down buttons
● Multi velocity curves available for selection (Key and Pads)
● Midi output jack
● 1 headphone output with assignable source and individual volume control
● Expression & sustain pedal TRS connectors
● Flexible channel routing via the software control panel
● Supports DirectSound, WDM and ASIO2.0
● Full duplex, simultaneous record/playback
● Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Reason, Reaper, Studio One and Ableton Live
● Mackie HUI protocol built-in for Pro Tools
● Driver built-in for Cubase, Nuendo, Bitwig and Reason for plug and play
● iMapTM software included for easy mapping of MIDI functions
● Firmware upgrades available via USB connection and iMap software
● Compatible with Mac OS (Intel-Mac) and Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit) & Windows 10 (32-bit/64-bit)
● USB 2.0 high speed connectivity
● Robust metal casing with Kensington lock port

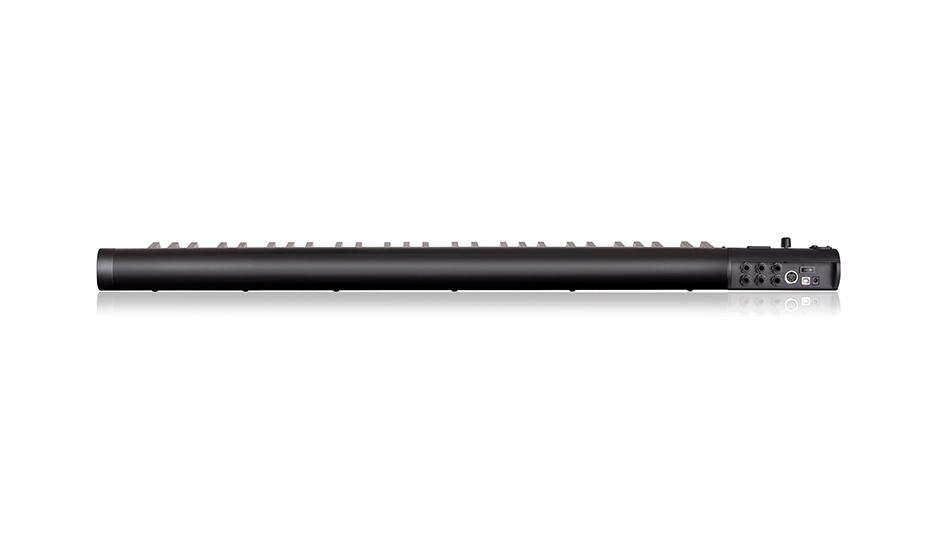

| Connector | |
| USB | USB connector (standard type) |
| Sustain & Expression | 2x1/4” TS connectors |
| MIDI I/O | 5-pin Din connector |
| Line in (L/R) | 2x1/4” TS connectors |
| Line Out (L/R) | 2x1/4” TS connectors |
| Mic in | XLR balanced connector |
| Headphone out | 1/4” stereo connector |
| General | |
| Power supply | 7V/1A DC |
| Current consumption | 500mA or less |
| Weight | 4.85kg 10.7(lb) |
| Dimensions | 1025(L)x189(W)x77(H)mm |
| Dimensions | 40.4"(L)x7.44"(W)x3"(H) |
| Mic Input (at Minimum Gain) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB |
| Dynamic Range | 93dB, A-weighted |
| Signal-to-Noise Ratio | -93dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -87dB @ 1kHz |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +34dB |
| Total Gain Range | +50dB |
| Line Inputs 1/2 (Unbanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Input Level | Unbalanced: +4dBV, typical; |
| Maximum Input level | Unbalanced: +11dBV, typical; |
| Input Impedance | 10K Ohms, typical |
| Line Outputs 1/2 (Unbanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Ratio | -102dB, A-weighted |
| THD+N | <0.003% (-90 dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Leve | Unbalanced: +4dBV, typical; |
| Maximum Output Level | +11dBV, typical; |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Output: (at Maximum Volume; Into 100 Ohm load) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
- iKeyboard 6S Quickstart
- iKeyboard 6S Drivers V1.35.24 Win 7-8
- iKeyboard 6S Firmware - V1.05
- iKeyboard 6S Firmware - V2.04
- iKeyboard 6S Drivers V1.37.10 Win 10
- iKeyboard 6S iMap Windows Setup - V1.01
- iKeyboard 6S User Manual (English)
- iKeyboard 6S User Manual (French)
- iKeyboard 6S User Manual (German)
- iKeyboard 6S User Manual (Italian)
- iKeyboard 6S User Manual (Japanese)
- iKeyboard 6S User Manual (Spanish)
- Setup procedure illustration - Cubase/Nuendo
- Setup procedure illustration - Logic Pro X
- Setup procedure illustration - Pro Tools
- Setup procedure illustration - Abelton Live
- Setup procedure illustration - Samplitude
- Setup procedure illustration - Reason
- Setup procedure illustration - Reaper
- Setup procedure illustration - Studio One
- Setup procedure illustration - Bitwig
- Setup procedure illustration - FL Studio
| iOS 7-11 | 是 |
| Mac OS 10.8(Intel CPU/32-bit) | 是 |
| Mac OS 10.8(Intel CPU/64-bit) | 是 |
| Mac OS X 10.9 | 是 |
| Mac OS X 10.10 | 是 |
| Mac OS X 10.11 | 是 |
| Mac OS X 10.12 | 是 |
| Windows XP (32-bit) | 否 |
| Windows XP (64-bit) | 否 |
| Windows Vista (32-bit) | 否 |
| Windows Vista (64-bit) | 否 |
| Windows 7 (32-bit) | 是 |
| Windows 7 (64-bit) | 是 |
| Windows 8 (32-bit) | 是 |
| Windows 8 (64-bit) | 是 |
| Windows 8.1 (32-bit) | 是 |
| Windows 8.1 (64-bit) | 是 |
| Windows 10 (32-bit) | 是 |
| Windows 10 (64-bit) | 是 |
