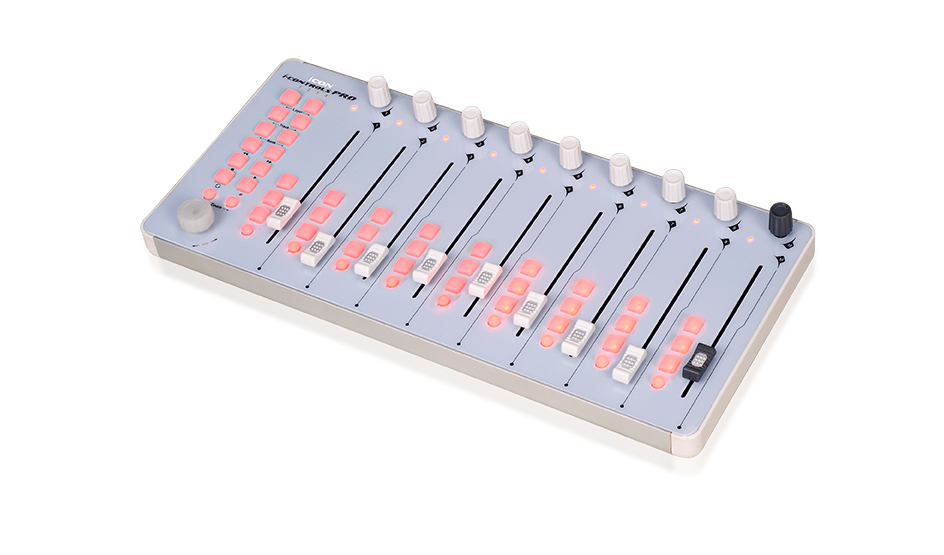

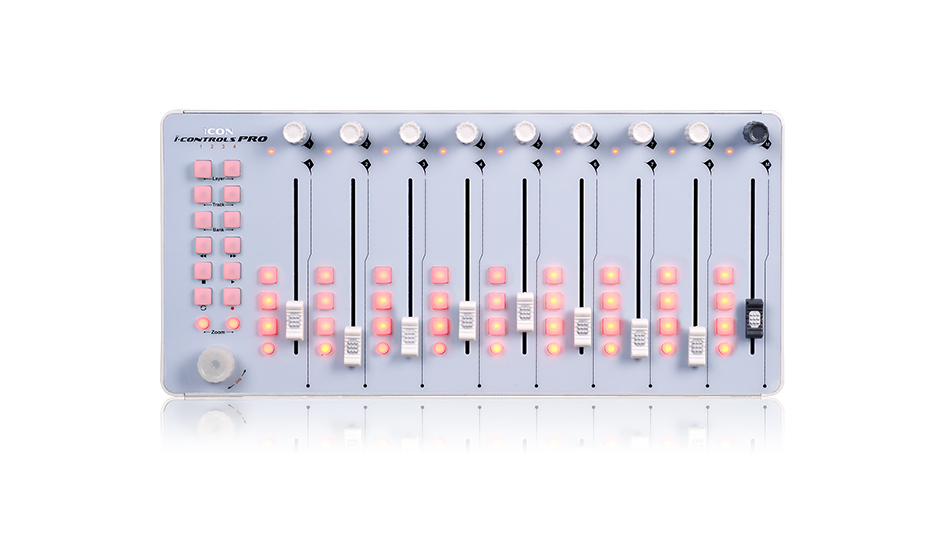

iControls Pro
●Extremely compact, designed to match the MacBook ProTM
●8 touch-sensitive motorized channel faders
●1 touch-sensitive motorized fader for master channel
●9 encoder knobs
●Jog wheel shuttle for fast search and control
●Illuminated buttons for each channel including Sel, Mute, Solo and Record
●6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast
forward and Loop
●Illuminated “Zoom” buttons with 2 direction keys
●2 illuminated “Track” buttons for easy selection of different channels
●2 illuminated “Bank” buttons for shifting 8-channels
●2 illuminated “Layer” buttons for selecting from layers 1 to 4
●2xUSB Connectors for a daisy chain with the i-Pro series product
●Mackie control build-in for Cubase, Nuendo, Samplitude, Logic Pro and Ableton Live.
●iMap software included for easy mapping of MIDI functions
● Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit),Windows 10 (32-bit & 64-bit), and Mac OS X
●USB 2.0 high speed connectivity
●Robust aluminum and metal casing with Kensington lock port
●An aluminium cover in different graphic designs and colours is available as
an optional extra
●9V/3A power adapter included
Connector | To computer: USB connector (mini B type) |
Connector | To i-Pro series controller:USB connector (standard type) |
Power supply | 5V/3A DC |
Current consumption | 2.0A or less |
Weight | 1.80kg (3.96lb) |
Dimensions | 393(L) X 180(W) X 45(H) |
Dimensions | 15.47”(L) x 7.09”(W) x 1.77”(H) |
- iControls Pro Quickstart
- iControls Pro Firmware
- iControls Pro iMap Windows v1.01
- iControlsPro iMap MacOS
- iControlsPro - for Ableton 8
- IControls Pro - Master+Slave setup
- iControls Pro User Manual - English
- iControls Pro User Manual - German
- iControls Pro User Manual - Spanish
- iControls Pro User Manual - French
- iControls Pro User Manual - Italian
- iControls Pro User Manual - Japanese
- Setup procedure illustration - Cubase/Nuendo
- Setup procedure illustration - Logic Pro X
- Setup procedure illustration - Pro Tools
- Setup procedure illustration - Abelton Live
- Setup procedure illustration - Bitwig
- Setup procedure illustration - Reaper
- Setup procedure illustration - Reason
- Setup procedure illustration - Samplitude
- Setup procedure illustration - Studio One
- Setup procedure illustration - MainStage
- Daisy-chain two units of iControls Pro (Master and Salve units)
iOS 7-11 | 是 |
Mac OS 10.8(Intel CPU/32-bit) | 是 |
Mac OS 10.8(Intel CPU/64-bit) | 是 |
Mac OS X 10.9 | 是 |
Mac OS X 10.10 | 是 |
Mac OS X 10.11 | 是 |
Mac OS X 10.12 | 是 |
Windows XP (32-bit) | 是 |
Windows XP (64-bit) | 是 |
Windows Vista (32-bit) | 是 |
Windows Vista (64-bit) | 是 |
Windows 7 (32-bit) | 是 |
Windows 7 (64-bit) | 是 |
Windows 8 (32-bit) | 是 |
Windows 8 (64-bit) | 是 |
Windows 8.1 (32-bit) | 是 |
Windows 8.1 (64-bit) | 是 |
Windows 10 (32-bit) | 是 |
Windows 10 (64-bit) | 是 |
