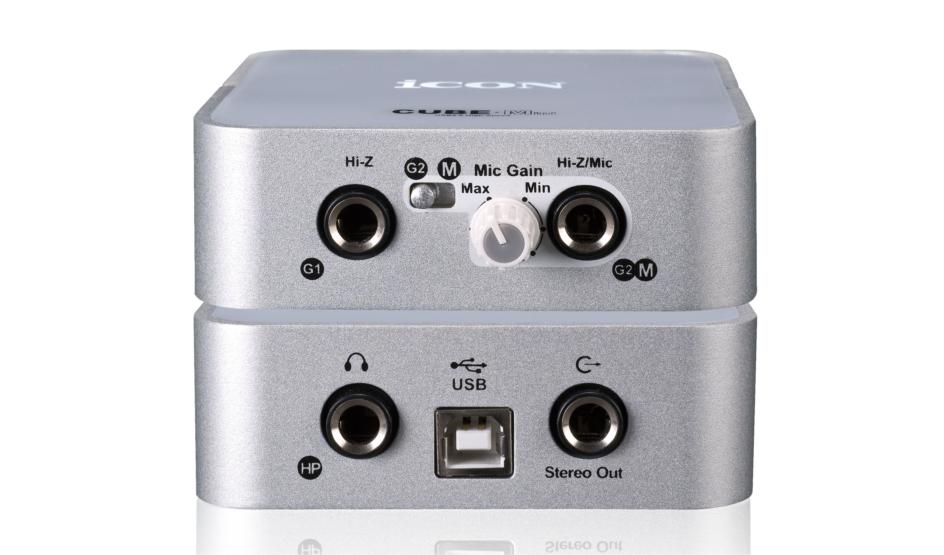

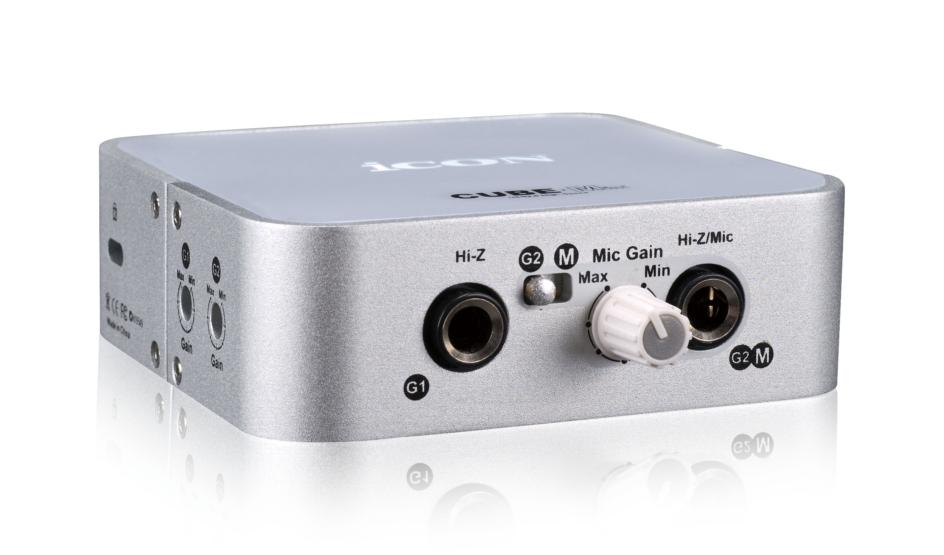

Cube Mini
- Extremely compact size : around 9cm x 9cm
- 24bit 96/192KHz 2-In/2-Out USB recording audio Interface
- 2×2 analog I/O full duplex recording and playback
- 1 Mic in with preamp for dynamic mic, switchable to Hi-Z in for guitar
- 1 Hi-Z in for guitar

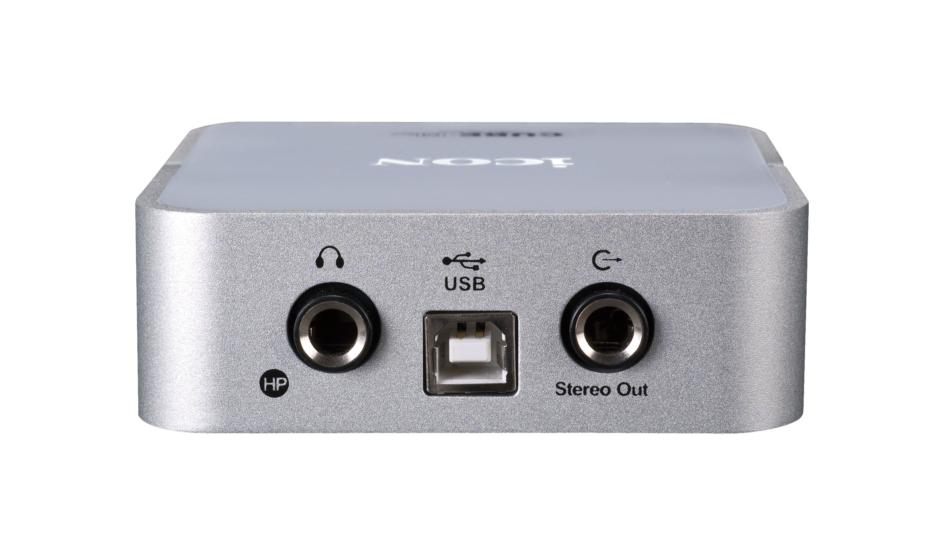

- 2 line out on a stereo 1/4″ TRS jack
- 1 headphone output on 1/4″ TRS jack
- USB2.0 High Speed equipped and USB bus-powered
- Supports Direct sound, WDM and ASIO2.0
- Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
- Full duplex, simultaneous record/playback
- Rugged aluminum construction
| Inst1/2 & Mic2 Inputs | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Input Impedance | Inst in: 500K Ohms, typical |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Total Gain Range | +45dB |
| Line Outputs 1/2 (Stereo, Unbalanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Ratio | -102dB, A-weighted |
| THD+N | <0.003% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical |
| Maximum Output Level | +11dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load) | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| General | |
| Weight | 0.285kg (0.63lbs) |
| Dimensions | 90 x 100 x 38 mm |
| Dimensions | 3.6” x 3.4” x 1.1” |
|
Samplitude 10 SE |
Mac OSX 10.11 El Capitan用户注意: 由于OSX核心音频功能发生变化，Icon USB音频设备目前与OSX 10.11 El Capitan不兼容。我们正在努力修复这个问题，希望尽快找到解决办法。同时，请记住，图标音频接口仍然与以前的OSX版本兼容。
如果您希望加入我们的El Capitan Beta测试团队 在获得OSX 10.11驱动程序后立即接收这些驱动程序，请使用联系人页面上的表单注册，并表明您希望加入Beta测试团队。对于给您带来的不便，我们深表歉意。
谢谢你的耐心等待。
| iOS 7-11 | 否 |
| Mac OS 10.8(Intel CPU/32-bit) | 是 |
| Mac OS 10.8(Intel CPU/64-bit) | 是 |
| Mac OS X 10.9 | 是 |
| Mac OS X 10.10 | 是 |
| Mac OS X 10.11 | 否 |
| Windows XP (32-bit) | 是 |
| Windows XP (64-bit) | 是 |
| Vista (32-bit) | 是 |
| Vista (64-bit) | 是 |
| Windows 7 (32-bit) | 是 |
| Windows 7 (64-bit) | 是 |
| Windows 8 (32-bit) | 是 |
| Windows 8 (64-bit) | 是 |
| Windows 8.1 (32-bit) | 是 |
| Windows 8.1 (64-bit) | 是 |
| Windows 10 (32-bit) | 是 |
| Windows 10 (64-bit) | 是 |
